Double-Sided (DST)
Adhesive on both sides provides up to 50 PSI for quicker drive-away time. Also, compensates for urethanes with slower cure rates.

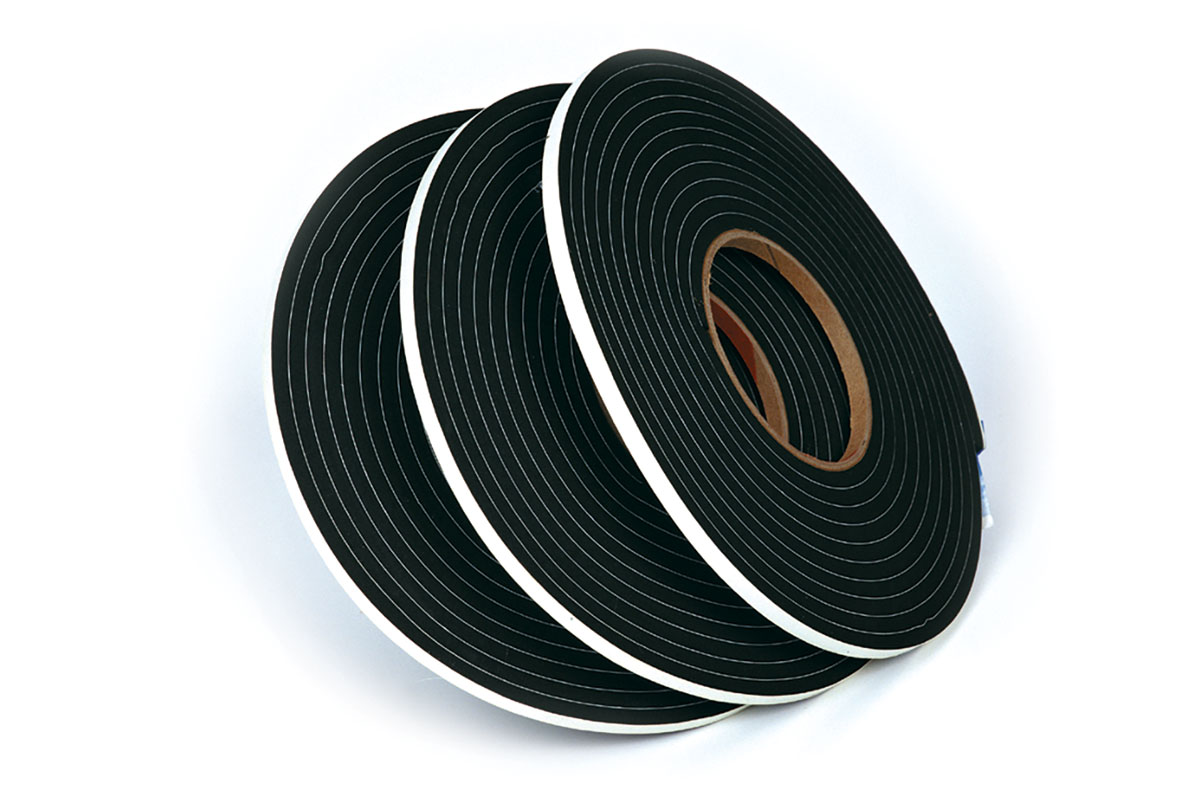

Single-Sided (One-Way)
Adhesive on one side (car body side) allows for adjustments after windshield has been placed.
Handy-Reels
Self-dispensing mobile-packaging that keeps single-sided foam clean and handy.
Mega-Reels
Large reels of continuous length single-sided foam provides most economical way to use foam.

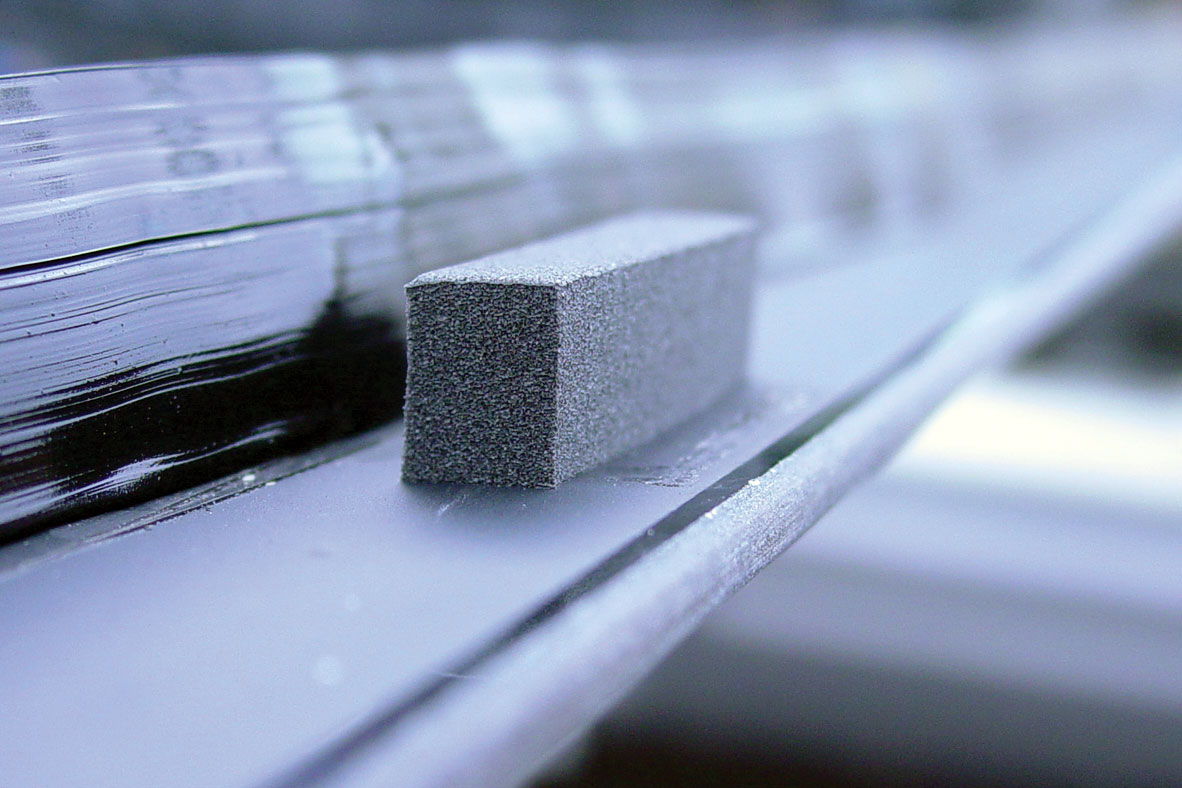

Height Setting Blocks
Even when using high-viscosity urethanes the glass may still sink too low into the urethane. One inch pre-cut blocks placed along the pinchweld will eliminate this problem.

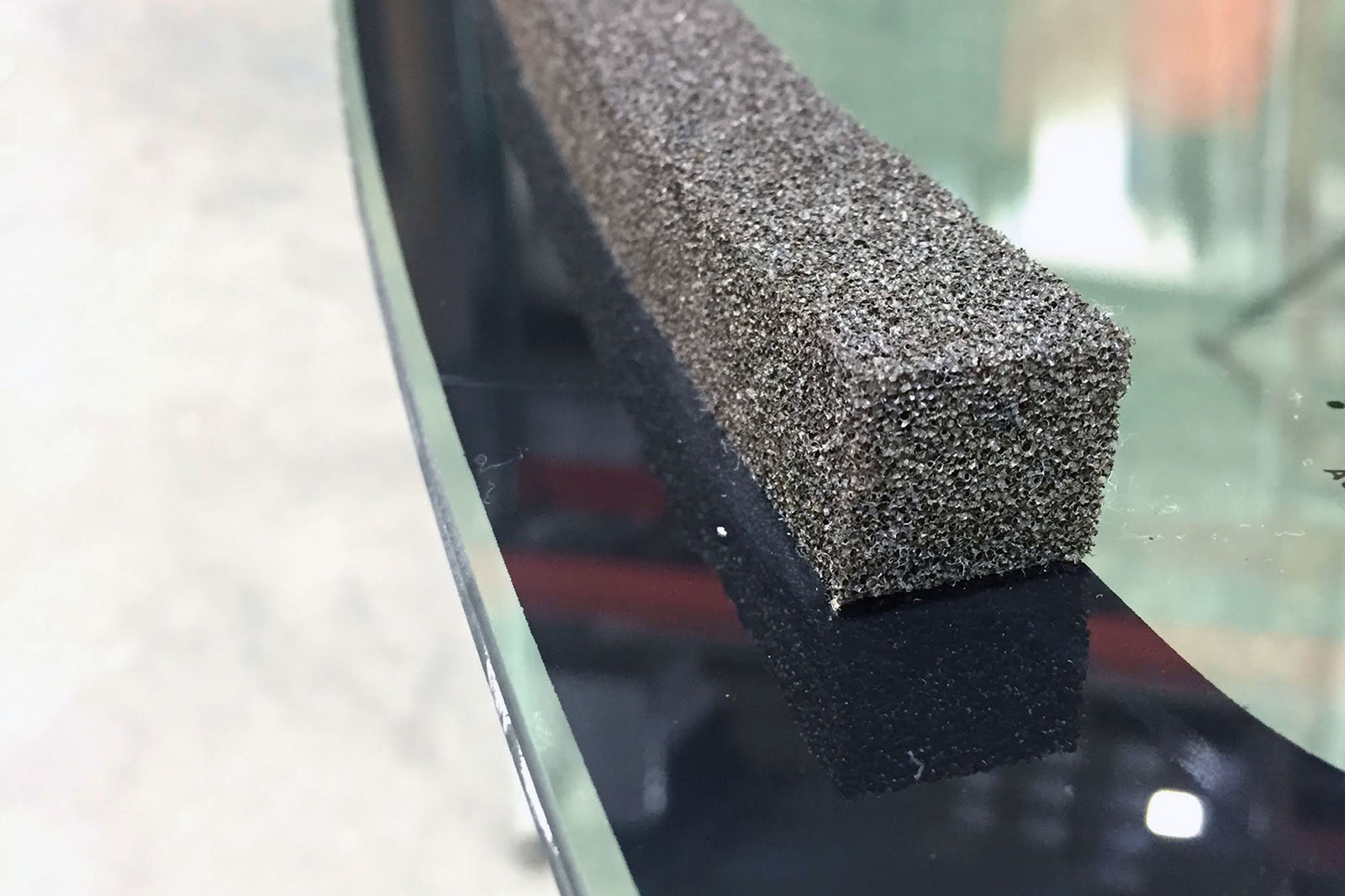

Dash Catching Expanding Foam
Expanding foam for application at the dash-windshield interface; replicates foam installed at OE for many BMW, Ford, models, etc.
Part No. | Description | Unit Packaging |
---|---|---|
Double-Sided; High Density | ||
ME5492 | 1/8″ x 3/16″ x 15′ (3.2mm x 4.5mm x 18mm) | 12 rolls/case |
ME5493 | 3/16″ x 3/16″ x 15′ (4.5mm x 4.5mm x 5.5m) | 12 rolls/case |
ME5494 | 1/4″ x 1/4″ x 15′ (6.4mm x 6.4mm x 5.5m) | 12 rolls/case |
ME5495 | 5/16″ x 1/4″ x 15′ (8mm x 6.4mm x 5.5mm) | 12 rolls/case |
ME5496 | 3/8″ x 1/4″ x 15′ (4.3mm x 6.4mm x 5.5mm) | 12 rolls/case |
Single-Sided; Medium Density | ||
ME6492 | 1/8″ x 3/16″ x 18′ (3.2mm x 4.5mm x 18mm) | 12 rolls/case |
ME6493 | 3/16″ x 3/16″ x 18′ (4.5mm x 4.5mm x 5.5m) | 12 rolls/case |
ME6494 | 1/4″ x 1/4″ x 18′ (6.4mm x 6.4mm x 5.5m) | 12 rolls/case |
ME6495 | 5/16″ x 1/4″ x 18′ (8mm x 6.4mm x 5.5mm) | 12 rolls/case |
ME6496 | 3/8″ x 1/4″ x 18′ (4.3mm x 6.4mm x 5.5mm) | 12 rolls/case |
Single-Sided; Medium Density (other sizes available via special-order request) | ||
ME9524 | 3/16″ x 3/16″ x 18′ (4.5mm x 4.5mm x 5.5m) | 12 rolls/case |
ME9525 | 1/4″ x 1/4″ x 15′ (6.4mm x 6.4mm x 4.5m) | 12 rolls/case |
ME9532 | 3/16″ x 1/4″ x 15′ (4.5mm x 6.4mm x 4.5m) | 12 rolls/case |
Handy-Reels (self-dispensing reels, single-sided foam) | ||
ME6484 | 1/4″ x 1/4″ x 200′ (6.4mm x 6.4mm x 60.9m) *special-order only | 12 rolls/case |
Mega-Reels (master reels, single-sided foam, hi-grade neoprene) | ||
ME6491 | 3/16″ x 3/16″ x 600′ (4.5mm x 4.5mm x 182.8m) *special-order only | 1 reel/case |
ME6497 | 1/4″ x 1/4″ x 800′ (6.4mm x 6.4mm x 243.8m) | 1 reel/case |
Height Setting Blocks (single-sided foam) | ||
ME7493 | 3/16″ x 3/16″ x 1″ (4.5mm x 4.5mm x 25.4mm) | 96 blocks/pad; 64 pads/case |
ME7494 | 1/4″ x 1/4″ x 1″ (6.4mm x 6.4mm x 25.4mm) | 72 blocks/pad; 64 pads/case |
ME7495 | 5/16″ x 1/4″ x 1″ (8mm x 6.4mm x 25.4mm) | 72 blocks/pad; 56 pads/case |
ME7496 | 3/8″ x 1/4″ x 1″ (4.3mm x 6.4mm x 25.4mm) | 72 blocks/pad; 48 pads/case |
Dash Catch Expanding Foam (additional widths available by special order) | ||
ME202002 | 3/4″ x 3/4″ x 6.5′ (20mm x 20mm x 2m) | 64 rolls/case |
